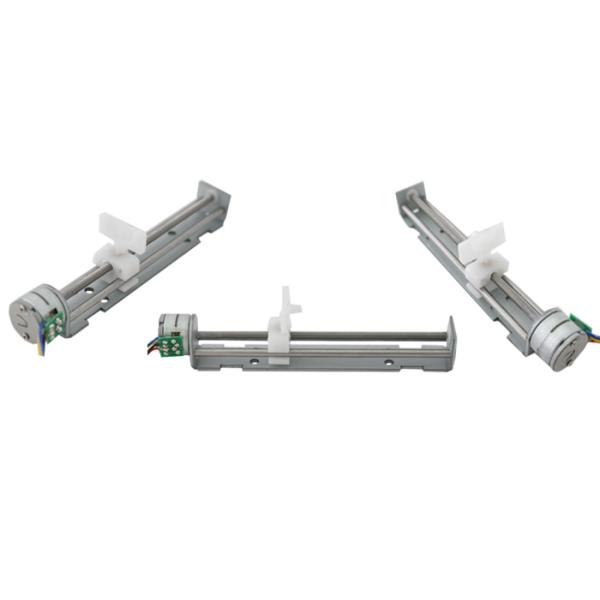

12V Drive 15 mm Stepper Motor Screw With Nut Slider 2 Phase 4 Wire Lead Slider Stepper Motor

Name: 12V Drive 15 mm Stepper Motor Screw With Nut Slider 2 Phase 4 Wire Lead Slider Stepper Motor
Brand: VIC-TECH
Price: 8 USD

China 12V Drive 15 mm Stepper Motor Screw With Nut Slider 2 Phase 4 Wire Lead Slider Stepper Motor wholesale

Brand Name : VIC-TECH

Model Number : VSM15-08L

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 unit

Price : $8-$15/unit

Payment Terms : Western Union, MoneyGram，Credit Card

Supply Ability : 1000000 units/year

Delivery Time : 15-30 work days

Packaging Details : Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.

Type : Permanent Magnet

Step Angle : 18°

Phase : 2

Current / Phase : 800mA

Rated Voltage : 12V 24V

Coil Resistance : 15 Ω±10%

Holding Torque : 500 gf.cm

Contact Now

12V Drive Stepper Motor Screw With Nut Slider 2 Phase 4 Wire Lead Slider Stepper Motor

12V Drive 15 mm Stepper Motor Screw With Nut Slider 2 Phase 4 Wire Lead Slider Stepper Motor

Mechanical Dimension:MM

12V Drive 15 mm Stepper Motor Screw With Nut Slider 2 Phase 4 Wire Lead Slider Stepper Motor

Feature:

Micro Sliding table fit for DIY laser engraving machine as its XY axis
Motor Type: 2 phase 4 wire
Driving Voltage: DC 4-9V/500mA
Step Angle: 18 degree
Screw Length: 90mm / 3.5inch
Screw Diameter: 3mm / 0.1inch
Slider Width: 15mm / 0.6inch
Effective Stroke: 80mm / 3.1inch
Screw Pitch: 0.5mm / 0.02inch
Stage Size: 105 x 15mm / 4.31 x 0.59inch
Retail Packaging: Yes, General Box

Main Application

1) Camera

2) Optical instruments

3) Lenses

4) Precision medical devices

5) Automatic door locks

Specifications

Product Name	φ15 mm stepper motor with nut slider
Model	VSM15-08L
Max. Starting Frequency	More Than 1100 PPS min.
Max. Response Frequency	More Than 1600 PPS min.
Voltage	12 V
Pull Out Torque	500 gf-cm min. (AT 129 PPS , 12V DC)
Insulation Class	CLASS E FOR COILS
Insulation Strength	100 V AC FOR ONE SECOND
Insulation Resistence	50 MΩ (DC 100 V)
Operating Temperature Range	-20 ~+50 ℃
Motor Surface Temperature	80 ℃
OEM & ODM SERVICE	AVAILABLE

Product Detail Presentation

12V Drive 15 mm Stepper Motor Screw With Nut Slider 2 Phase 4 Wire Lead Slider Stepper Motor

Type Of Wire Connect For Reference

The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
